Microplate Reader LMMR-M102

Microplate Reader LMMR-M102

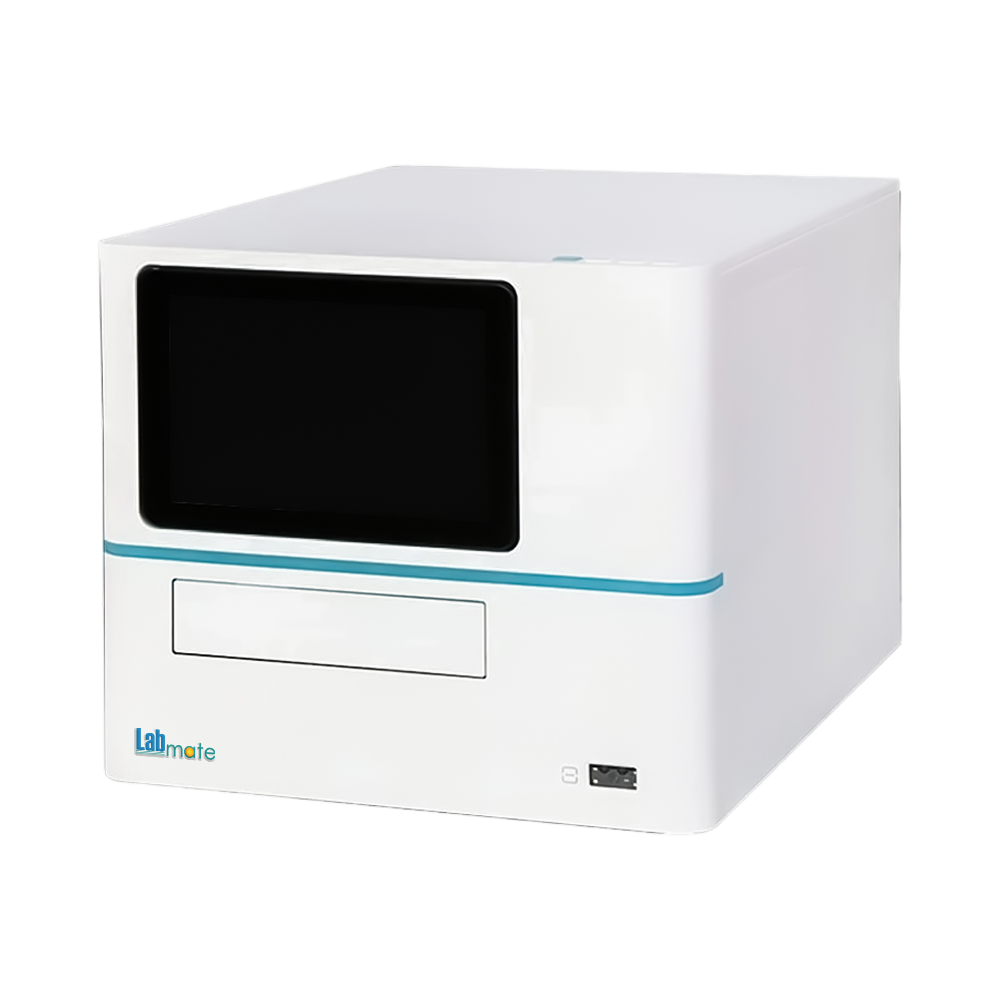

Microplate Reader LMMR-M102 is a compact and reliable reader, providing accurate and fast photometric measurements using eight channel optic fiber scanning which is Ideal for assays in the 400nm to 850nm wavelength range. With a reproducibility range of 0.2 percent, the reader analyses 96/48-well micro plates while conducting 12 separate tests in one plate. The unit uses a 7” high resolution LCD touch screen along with a tungsten halogen lamp of 8V/50W for flexible reading of the accurate results.

Get Quote
Wavelength Range 400nm to 850nm
Microplate Type 96/48 well plate
Photo Detector Silicon photodiode
Reading Range 0.000 ~ 4.000 A
Resolution 0.001 A
Accuracy ±0.008 A
Reproducibility ≤0.2%
Stability ±0.003 A
Standard Filters 405,450,492,630nm & 4 optional
Light Source 8V/50W controlled tungsten halogen lamp
Reading Speed Single wavelength≤3s; Double wavelength≤6s
Shaking Linear shaking; 3 speeds
Printer Built-in thermal printer, optional external printer
Interface Connections 2×USB, 1×RS232, PS2 Mouse Keyboard
Power Supply 100 to 240V, 50/60Hz

point.png 7 inch high resolution LCD touch screen

point.png 8 channel optical fiber scanning

point.png Single or dual wavelengths measurement

point.png Performing 12 different tests in one plate

point.png Extensive report with patient information

point.png Auto lamp adjustment and auto calibration

point.png Stable memory stores up to 200,000 test data, 500 test projects

point.png User friendly and easy to program

point.png Graphical operating interface

point.png High quality long-life tungsten halogen lamp

Microplate Reader is suitable for many enzymatic and colorimetric assays such as immunoassays, reporter gene assays, protein quantification, DNA quantification etc.
